Makerfire GPS Compass Module M8Q-5883, Mini FPV GPS Module,SAM-M8Q GPS QMC5883L Compass Module for RC Drone FPV Racing
Bеѕt Cуbеr Mоndау 🔥 Makerfire GPS Compass Module M8Q-5883, Mini FPV GPS Module,SAM-M8Q GPS QMC5883L Compass Module for RC Drone FPV Racing A quick review
So you can check out the other reviews at Amazon.com
only with $
| Brand | Makerfire |
| Are Batteries Included | No |
| Display Type | LED |
| Item Dimensions LxWxH | 0.79 x 0.79 x 0.39 inches |
- 72-channel M8 engine GPS L1C/A, SBAS L1C/A, QZSS L1C/A, QZSS L1 SAIF, GLONASS L1OF, Galileo E1B/C
- On-board Ultra low noise 3.3V voltage regulator and RF filter for noise blocking
- Features an additional front-end LNA for optimized performance and a front-end SAW filter for increased jamming immunity
- Build-in embedded GNSS patch antenna, low power consumption

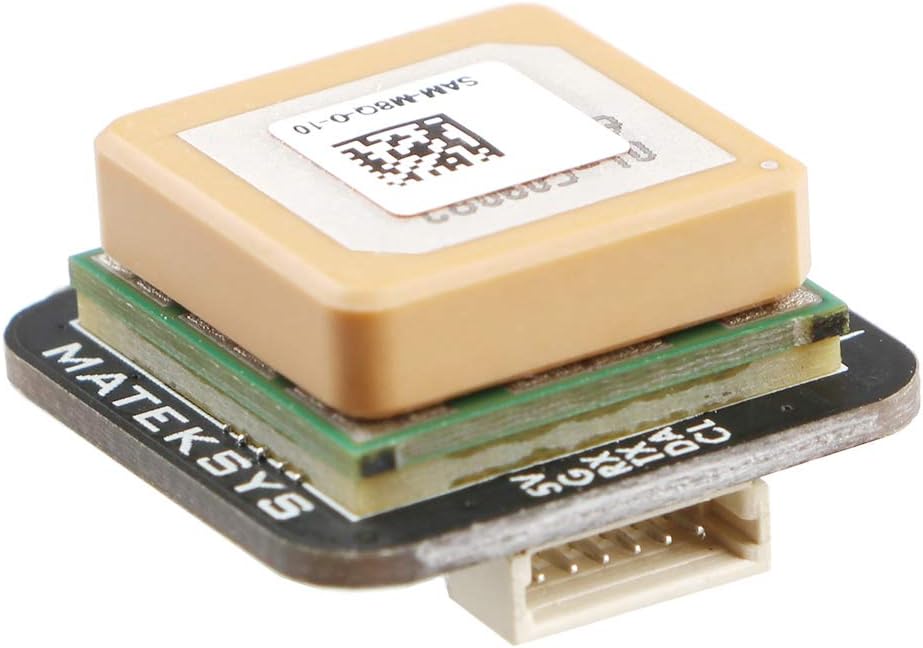

- The 15 x 15 mm patch antenna provides the best compromise between the performance of a Right Hand Circular Polarized (RHCP) antenna and a small size to be integrated in any design.
Product Description
Specification:

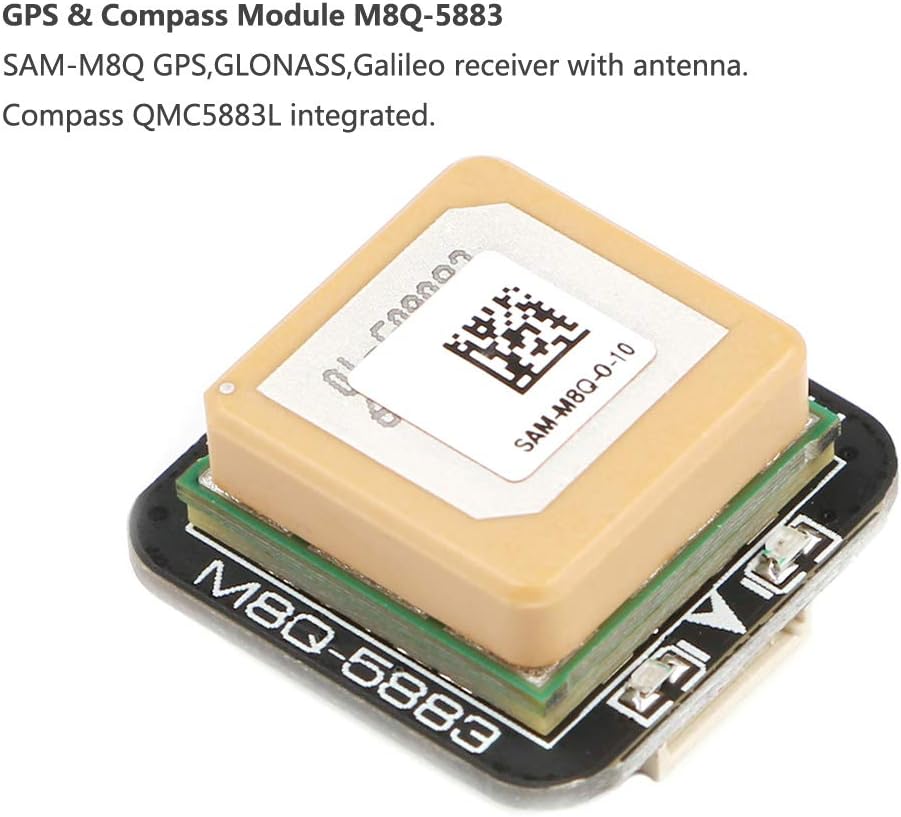

Item name:GPS and compass module M8Q-5883

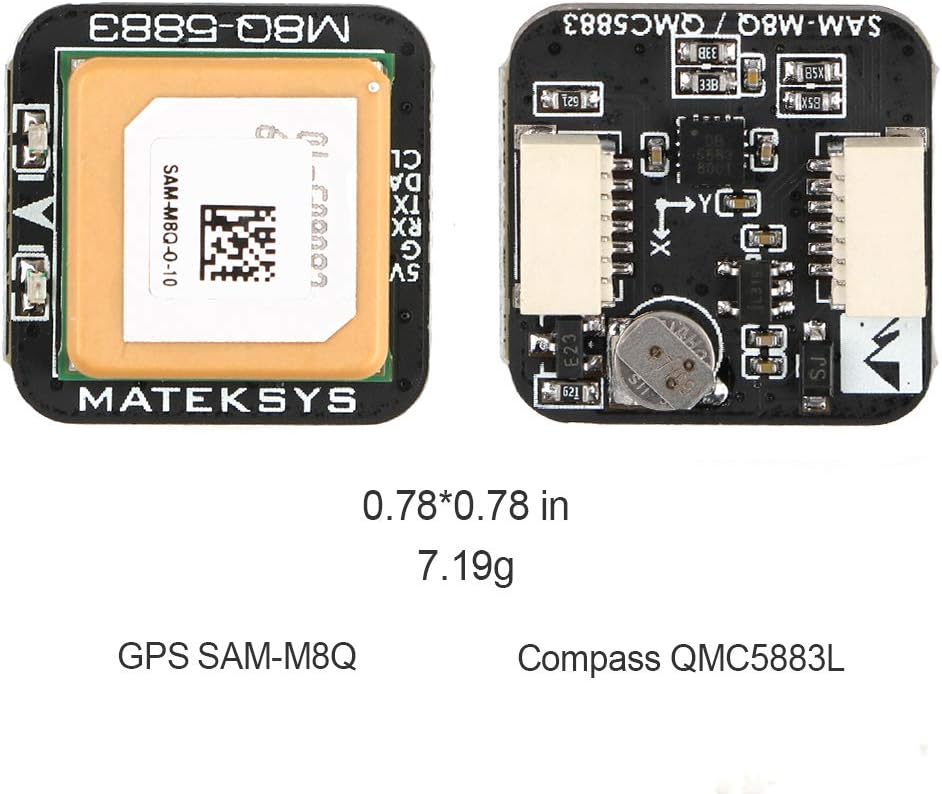

Dimensions: 20 x 20 x 10 mm
Weight:7g
Input voltage range:4~6V

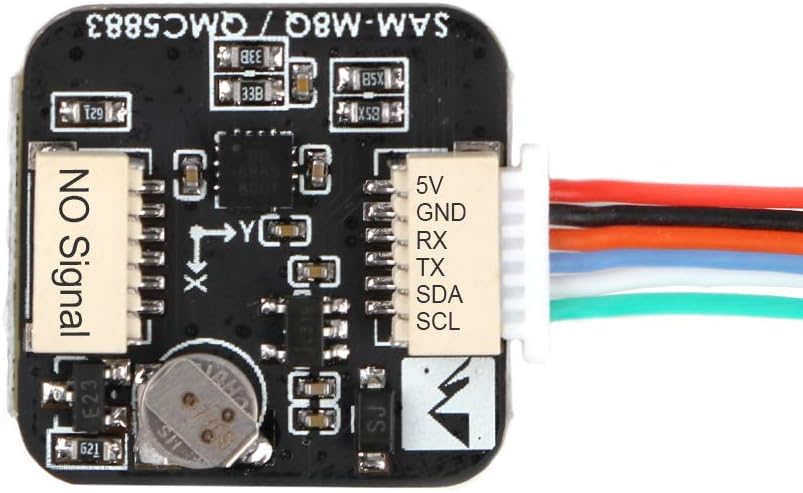

Uart (Tx,Rx) interface for GPS SAM-M8Q
I2C (DA,CL) interface for Compass QMC5883L
Battery for HOT module start

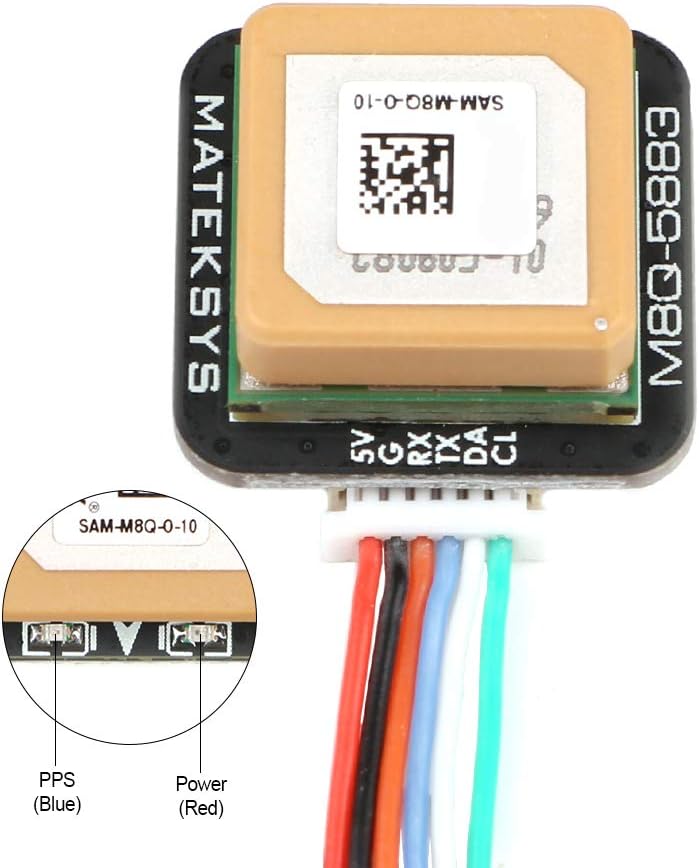

Power LED(Red)andamp;Time pulse LED(Blue)
Supported by INAV/Betaflight/Ardupilot, ect.
Features:
Magnetic sensor QMC5883L integrated
Max navigation update rate
Single GNSS up to 18 Hz
2 Concurrent GNSS(GPS andamp; GLONASS) up to 10 Hz
Horizontal position accuracy(GPS andamp; GLONASS) 2.5 m CEP
Velocity accuracy 0.05m/s
Cold start 26s
Aided cold starts:2s
Hot start 1s
Sensitivity
Tracking andamp; Navigation:–165dBm
Reacquisition:–158dBm
Cold start:–146dBm
Hot start:-155dBm
Tips:
GPS, GLONASS, SBAS, QZSS are enabled by default
Blue PPS LED blinking(1Hz) means 3D fixed
update rate 1Hz andamp; baudrate 9600 default
Baud 9600~115200 supported by INAV/BF/Ardupilot
update rate 5Hz with INAV Protocol
update rate 10Hz with INAV Protocol
Compass Alignment(Arrow forward):
INAV/BF: CW 270° Flip
Ardupilot/Mission Planner: Rotation None
BF doesn’t support GPS position hold and RTH, GPS Rescue mode is supported by BF3.5 or last.
No need compass for Fixed wings with INAV firmware
The scratches on ceramic antenna are the result of tuning the antenna by
Packing list:
1 * M8Q-5883 module
1 * SH1.0-6P 20cm silicon wire
